Sterilizing Dishwasher

Sterilizing Dishwasher

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now
Sterilizing Dishwasher

Click to enlarge image

 Origin

Korea

 Model Number

Prime -Door Type Series


Prime -Door Type Series

- Specifications

Item Description
Model 5003-AP
Dimensions (mm) 660(W) 700(D) 1,380(H)
Weight (kg) 85kg
Material Stainless Steel
Connection Water Supply 1/2(15A) Bellow
Drainage 39 Sink Hose
Wash Wash Type Top/Bottom Rotation Spray
Water Flow 400Liter /min.
Water Temperature 70°C ±5°C
Tank Capacity 32Liter
Heater None
Washing Capacity (Time) (Dish, Bowl) 1,500 Dishes/Hour (250Dishes/10 min.)
Washing Time 30 sec.~90 sec.
Rinse Water Flow 30Liter /min.
Water Temperature 85°C ±5°C
Tank Capacity 24Liter
Rinsing Time 6 sec.~16 sec.
Heater 3.5kw
Electricity Washing Motor 0.75kw
Rinsing Motor 0.094kw
Max. Power Consumption 4.25kw/h
Power Supply AC 220V~230V, 50Hz(60Hz)
Safety Device Door Safety Device
Heater Prevention Device
Water Level Controller
Energy Saving Device None (Heat Collecting Device)
Detergent Residue 0%
Water Healter Separate Installation

- Features

  1. Powerful motor: The best washing performance and endurance with a power motor developed from Denmark
  2. Once-more rinsing: Better sterilization by rinsing dirty dishes once more
  3. More clean thanks to rinse that does not leave residue.
    Detergent is washed away completely.

Strengths (Common)

  1. Fast and convenient washing: One-minute washing and rinsing. 200~300 dishes/10 minutes or 1200~1800 dishes/hour
  2. 8-stage washing time: 50seconds to 120 seconds. (10-sec increment)
  3. Best washing performance: Maximum washing with convenient washing time setting
  4. Hot water supply at an accurate temperature: With an error of 1°, water temperatures are maintained to provide the best washing performance.
  5. Detergent amount control: 10 seconds to 17 seconds (1-sec increment).
  6. One-touch control: If you push the button once, all procedures from washing to rinsing to drying are carried out automatically and displayed on the front lamp.
  7. Ergonomic design: The platform is 85cm high, which is suitable for long operation.

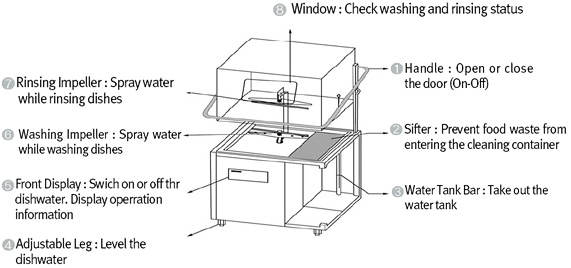

| A. Components and Features

1) Components

(1) Body : 1
(2) Pin Rack : 2
(3) Plane Rack : 1
(4) Detergent and Rinse Hose Connector : 1 Respectively
(5) Operation Manual : 1
(6) Warranty : 1

| B. Cautions
* Keep followings to use the dishwasher without faults and accidents

(1) Use only the dishwasher specific detergent and rinse. If you use general detergent, too many bubbles are generated, dishes are not washed, and the motor can have a fault.

(2) Don’t run the dishwasher right after power is on. Since water temperatures are low, too many bubbles are generated and the motor can have a fault.

(3) Don’t spray water to clean the dishwashes. If you spray water to the dishwasher, it may cause a fault to the dishwashes.

(4) Ground the dishwasher for safety reasons.
When the dishwasher is grounded, it can prevent electric shocks.

* How to Ground
Connect the ground wire to the copper plate and bury the copper plate 30 cm deep in the wet ground.

* Never ground following places
Never ground to places or parts such as gas pipes that may break by an electric shock.

| C. Operation

1) Components

  1. Open the door
  2. Open the water supply valve and gas valve, then switch on the circuit breaker.
  3. Turn on the power switch on the front panel (The Water Supply lamp is on).
  4. The front panel displays Set.
  5. Wait until the tank is filled with water.
  6. The Ready lamp on the front panel is on. And then wait another one hour (two hours for Prime Gold).

* Drain water from the dishwasher and heat recovering device completely to prevent freezing (Prime Gold)

2) How to Use the Dishwasher

  • Remove remnant food from dishes and dip them in the sink.
  • Place dishes upright.
  • Place the smaller dishes to the rack edge and the bigger ones at the rack center.
  • Place up to 14 dishes for the maximum result.
  • Place cups and bowls upside-down.
  • Separate dishes as much as possible
  • Don't place dishes tightly.
  • Don' t make anything stick out from the rack.
    This may lower washing performance or cause a fault
    (Especially, spoons and chopsticks).

3) Operation

- Place dishes in the rack. Don’t use the dishwasher for plastic, silver, or aluminum wares that cannot withstand over 90°C Remove remnant food from dishes before placing them in the rack.

- Open the door.


- Close the door.

- Insert the rack along the guides inside of the dishwasher tank.


- 3 to 5 seconds after the alarm sounds, open the door and take out the rack.

| D. Check followings if the dishwasher does not work

* Check followings before contacting us for faults

Symptom Check Point Troubleshooting
Power is not on.
  • Is the circuit breaker on?
  • Is the power switch on?
  • Turn on the circuit breaker.
  • Turn on the power switch.
  • Low washing performance
  • Is the washing nozzle clogged?
  • Are dishes placed tightly?
  • Is there detergent?
  • Is there dry remnant food on dishes?
  • Clean the washing nozzle.
  • Give enough room between dishes.
  • Give enough room between dishes.
  • Supply detergent.
  • Remove dry remnant food (Dip dishes in the water for a while).
  • Low rinsing and drying performance
  • Is the rinsing nozzle clogged?
  • Are dishes placed tightly?
  • Is there rinse?
  • Is rinsing water hot enough?
  • Clean the rinsing nozzle.
  • Give enough room between dishes.
  • Supply rinse.
  • Wait until water reaches set temperatures.
  • Bubble
  • Do you use the dishwasher specific detergent?
  • Are there dishes with general detergent?
  • Use the dishwasher specific detergent. (General detergent causes bubbles).
  • Remove general detergent from dishes first.
  • Check water temperatures
  • Dishes become black after washing.
  • Is washing water hot enough?
  • Did you wash black pots together?
  • Did you leave other dishes with black pots in the sink?
  • Don’t wash or place black pots with other dishes.
  • | E. How to Clean the Dishwasher

    1) Period

    • General restaurants: Once a day after business hours
    • Large restaurants: After lunch and after business hours

    2) Cleaning

    • Turn off the power switch.
    • Turn off the circuit breaker.
    • Take out the sifter and get the water tank bar to drain water.
    • Remove waste from the sifter.
    • Rinse the main tank and remove waste.
    • Clean the outside of the body with a towel
    • Close the water tank bar, place the shifter, and close the door.
